Bulk Cylinders

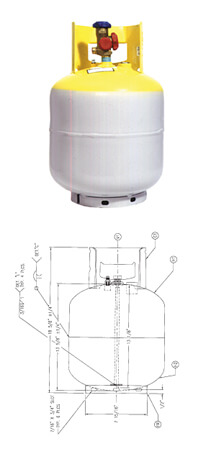

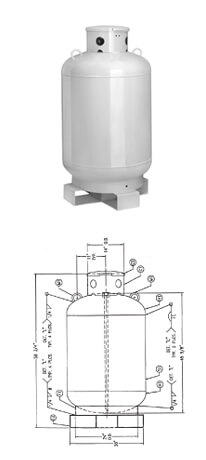

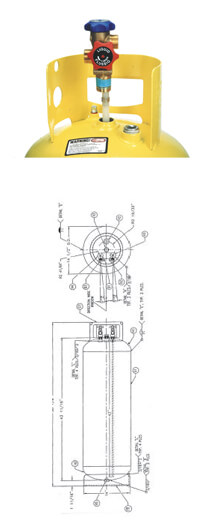

These carbon steel cylinders are for storing and dispensing bulk quantities of hazardous or air sensitive liquids and compressible gases. The cylinders meet the listed DOT specifications and pressure ratings. All cylinders are fitted for both liquid and gas dispensing. zCYL-B-022 is equipped with a dual port brass valve. zCYL-B-100 has two brass valves with CGA 660 connections. zCYL-B-225 & zCYL-B-450 have 1”NPT stainless ball valve (liquid) and a ¾” NPT stainless ball valve (vapor).
| Product Code | Capacity | Nominal Tare | Pressure Rating |
|---|---|---|---|
| zCYL-B-022 | 21.5 liters | 14.7 kg | 4BA400-400 psi |
| zCYL-B-100* | 100 liters | 33.7 kg | 4BW260-260 psi |
| zCYL-B-225 | 225 liters | 96.2 kg | 4BW240-240 psi |
| zCYL-B-450 | 450 liters | 150.6 kg | 4BW240-240 psi |

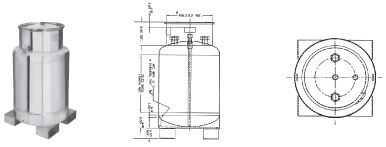

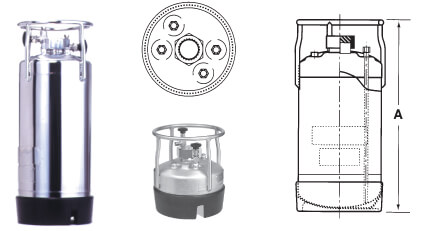

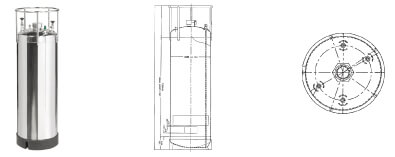

Stainless Steel Bulk Cylinders
Electropolished 316L stainless steel cylinders for storing and dispensing bulk quantities of corrosive or high purity liquids and compressible gases. Head configuration includes four ¼” NPT pipe fittings and 2? access port. The price includes two ¼” stainless needle valves equipped ¼” Swagelok fittings.
| Product Code | Capacity | Pressure Rating | Nominal Tare | DOT Specifications | Diameter | Height |
|---|---|---|---|---|---|---|
| zCYL-S-004 | 3.8 liters | 185 psi | 4.5 kg | UN1A1/X1.8/1390 | 229mm | 273mm |
| zCYL-S-019 | 19 liters | 185 psi | 9.6 kg | UN1A1/X1.2/1390 | 229mm | 616mm |
| zCYL-S-060 | 60 liters | 185 psi | 24.8 kg | UN1A1/X1.2/1480 | 305mm | 1070mm |
| zCYL-S-209 | 209 liters | 72 psi | 70.8 kg | UN1A1/X1.8/640 | 610mm | 1141mm |
